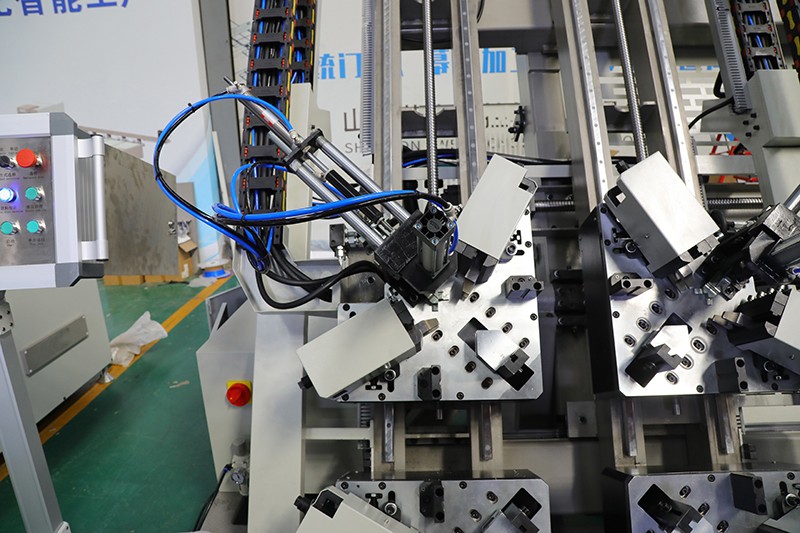

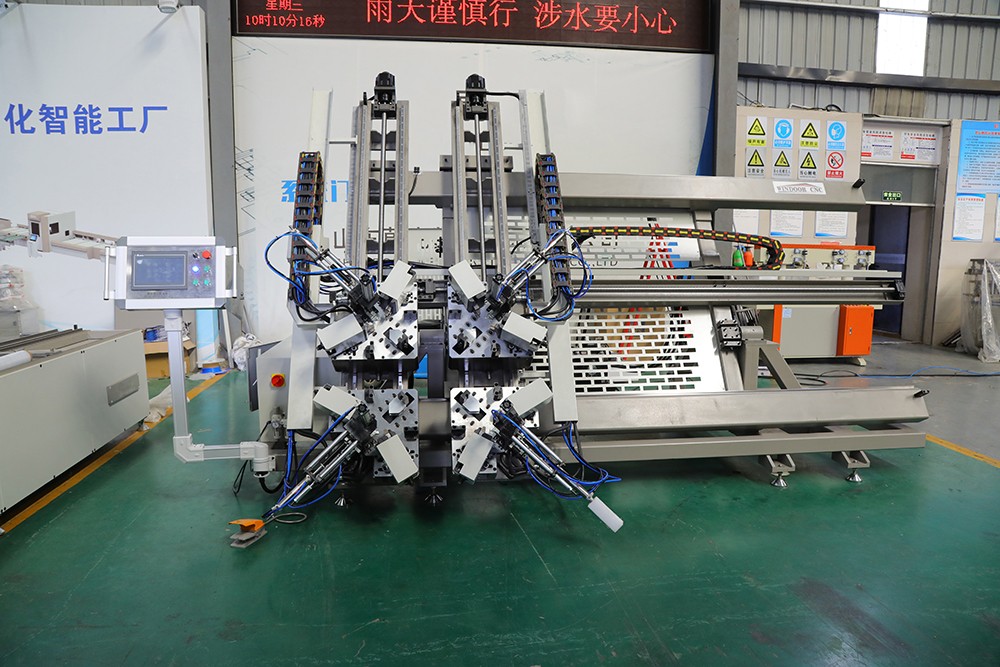

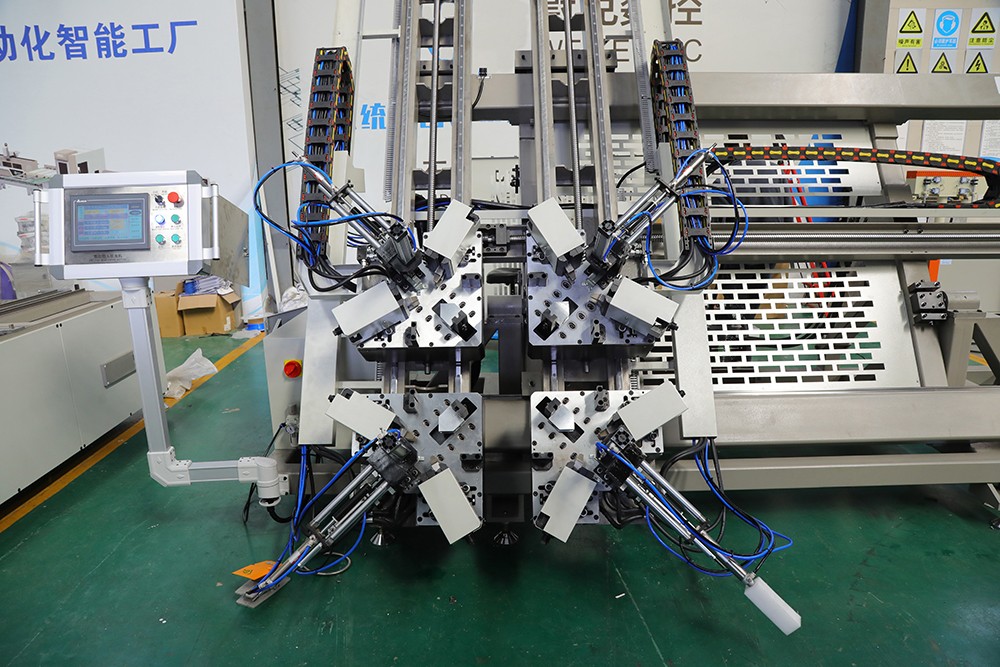

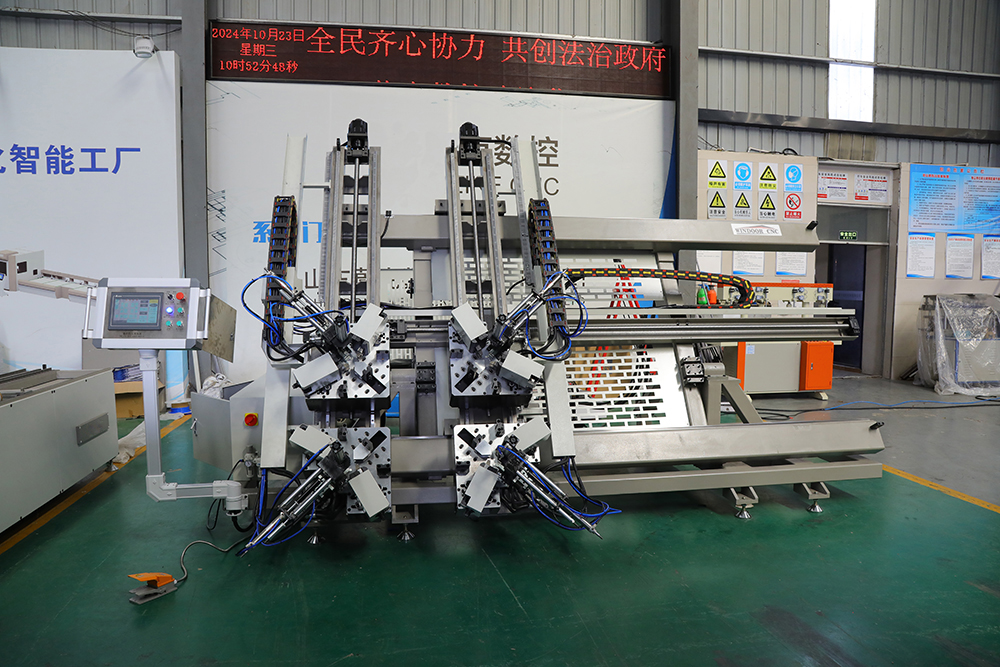

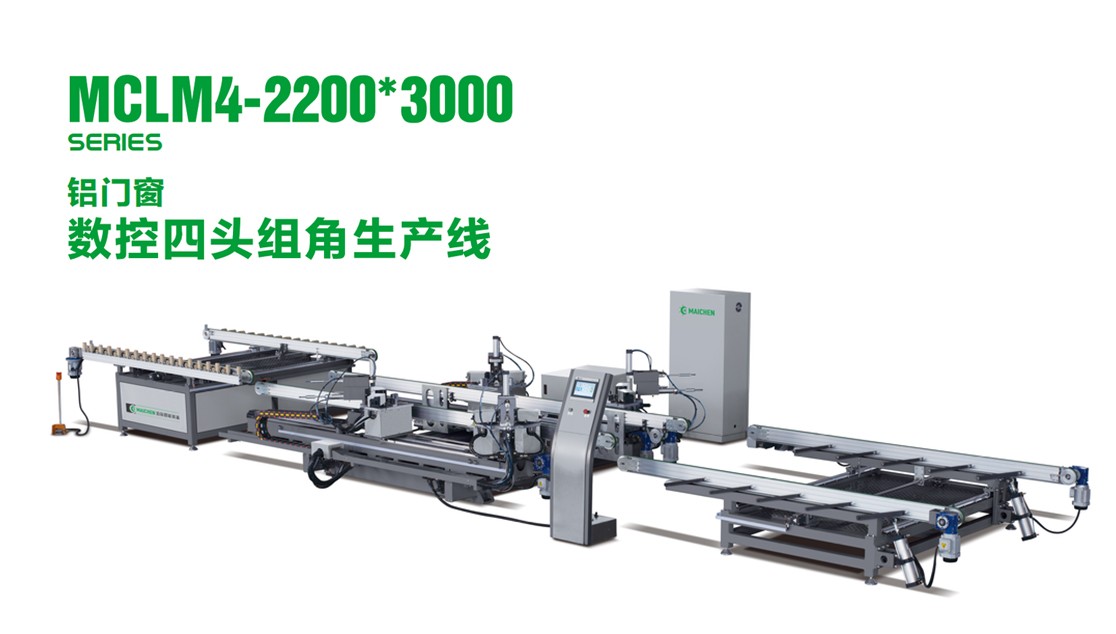

Four Head Aluminum Corner Crimping Machine

Performance Features

1. The machine is used for the assembly of aluminum window and door corner. It can complete the corner punching and riveting connection of four corners at one time, with high production efficiency.

2. The machine adopts numerical control system, which can automatically locate the window size. Through torque monitoring, the four corners can be tightened automatically, which can realize the automatic positioning of machine heads with different size window types. The positioning is accurate and the precision of finished windows is high.

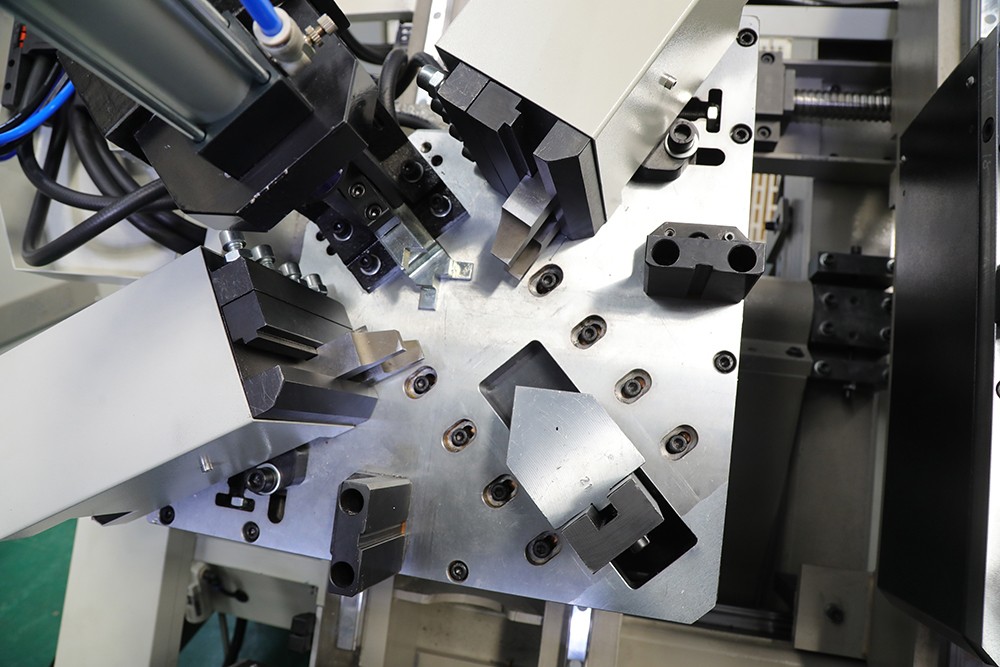

3. The angle cylinder is adjustable from front to back, left to right and easy to operate. It can be used for punching and riveting angles of different profiles, with a wide range of application.

4. It is applicable to the production of high-quality window and door with large quantities, multiple varieties.

Technical Parameter

1. Power supply: 380V/3Phase/50Hz    Power: 7.5Kw

2. Air pressure: 0.5~0.8Mpa          Rated oil pressure: 15MPa

3. Oil tank capacity: 60L         Maximum frame height 140mm

4. Maximum frame size of group corner: 2000×3000mm

5. Minimum frame size of group corner: 450×450mm

6. Overall dimension: 4300×2200×2850mm

Company Profile

Shandong Maichen CNC Machinery Co.,LTD. is a leading enterprise in building  Windows and doors and building glass industry, specializing in manufacturing complete sets of building energy-saving plastic windows and doors machines, aluminum alloy windows and doors machines, insulating glass machines, curtain wall machines. The company was founded in 2005, the products all over China's provinces, cities, autonomous regions, and exported to the United States, Europe, Russia, Nigeria, the United Arab Emirates, Brazil, India and other more than a dozen countries. We strictly in accordance with the ISO9001:2000 version of the international quality certification system, manufacturing quality, safety, standard of high quality products to get the best evaluation from customers, with good customer reputation to increase the annual turnover is our sales strategy.

The company has riveting welding workshop, mechanical processing, painting workshop, assembly workshop, exhibition hall, warehouse, covering an area of more than 30 mu, can be customized according to customer requirements and production needs of non-standard equipment. Precision mechanical parts, rigorous assembly attitude, perfect after-sales service for every customer escort. More than 30 kinds of aluminum window processing machines can complete the cutting, Angle group, drilling, punching, bending round process of aluminum profiles; More than 20 kinds of plastic doors and windows processing machines can complete plastic profiles cutting, welding, milling, cleaning procedures; More than 20 kinds of insulating glass processing machines and glass curtain wall machines can complete the cutting, cleaning, heating, gluing, cold pressing, edging, assembly and filling processes of slot-aluminum insulating glass or composite adhesive strip insulating glass. Due to the difference of production scale and efficiency, we can provide customers with the factory plan, cost accounting and the latest industry information according to the most reasonable set of industrial line assembly line operation according to your output ratio. In order to make your installation and use more safe, convenient, fast and efficient work, we have arranged professional engineers to do after-sales technical guidance, troubleshooting and other technical problems for you.
