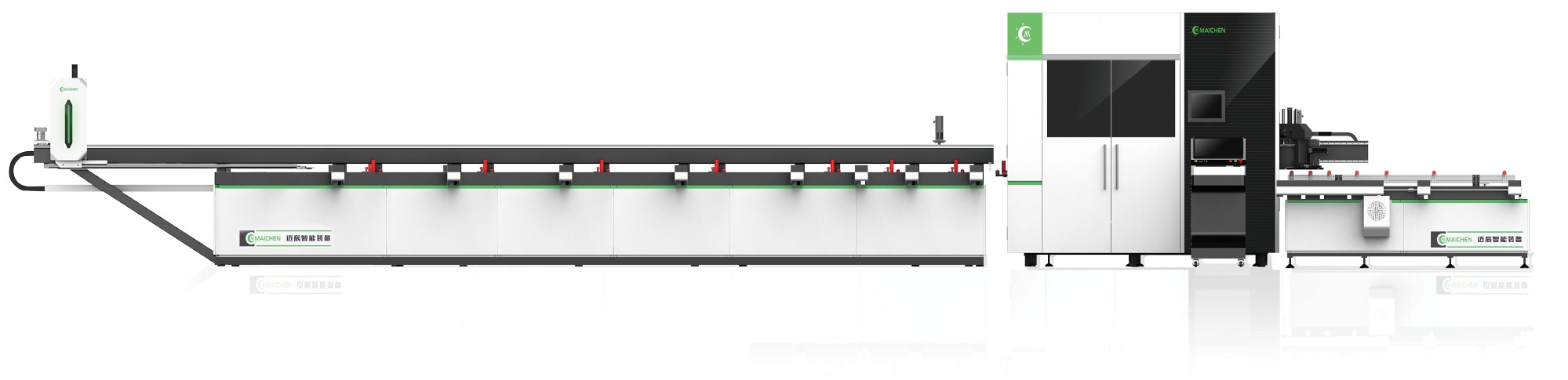

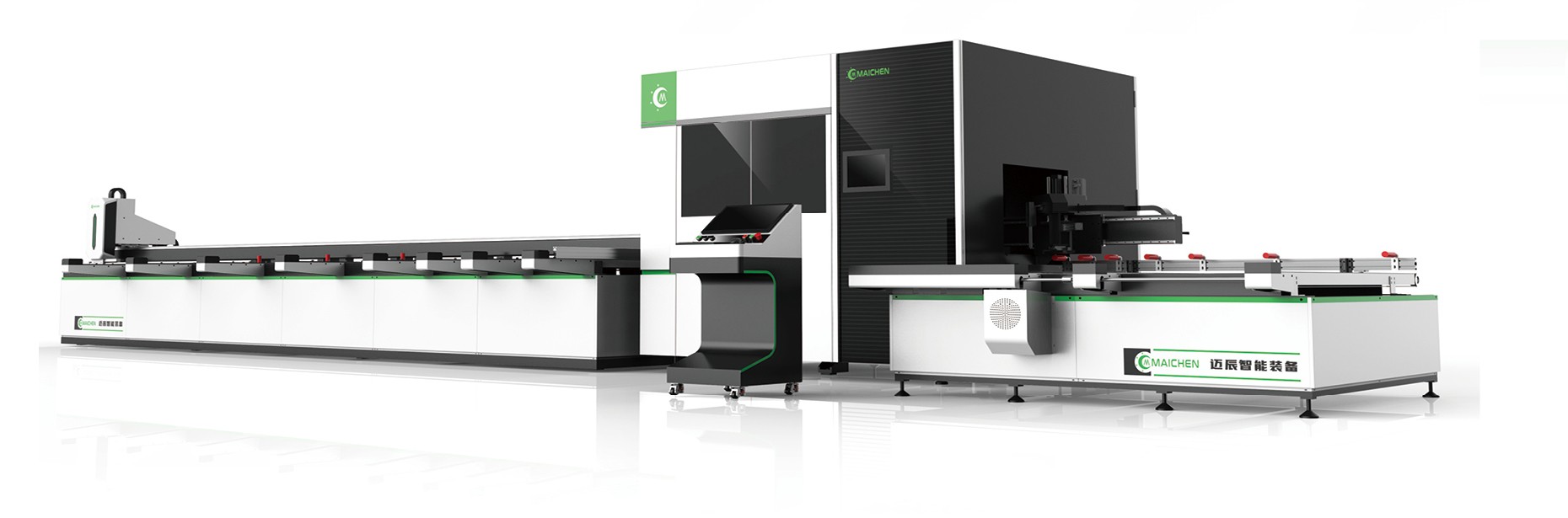

Aluminum Window Work Station(Machining Center and Cutting Center) Super Pro 5
Performance Features
1. This machine is an intelligent cutting and milling center integrating drilling, slotting, cutting, corner protection, laser marking and label printing. It is equipped with 13 axes, 3 sets of special cutting methods, 5 sets of drilling and milling devices on four sides, front and rear laser marking devices, automatic label printing devices and waste collection devices, which can realize the function of 45-degree cutting, 45-degree and 90-degree mixed cutting, corner protection cutting and automatic label printing. CNC three-axes manipulator can be adjustable and memorized.Circulating loading and unloading platform can realize flow production.The scraps are collected automatically. Equipped with dual monitoring, it is safer to observe through the screen.
2. As a whole, the thickened square tubes are welded and after aging treatment, the internal stress is eliminated. Processed by gantry and formed at one time, with higher accuracy.
3. The chassis base and main components are all cast in one piece, which is not easy to deform and more stable.
4. The main components and systems are well-known brands to ensure the data processing and durability of the equipment for a long time.
5. Industrial appearance metal plate fully wrap the chassis, beautiful and safe.
6. Connecting mainstream door and window software, transmission then can process.
Technical Parameter
Overall dimensions (L * W * H) | 14750mm*3500mm*2800mm (Excluding dimensions of chip conveyor) |
Chip conveyor size (L * W * H) | About 3150mm*500mm*700mm |
Total weight | about 8 tons |
Input power | 380V/50HZ Three-phase four-wire system |
Operating air pressure | 0.6-0.8MPA |
Blade speeds | 15-50m/min |
Servo running speed | 40-80m/min |
Blank length | ≤6350mm |
Cutting length | ≥300 |
Allowed loading quantity of loading table | 8+1 in cycle |
Blade Diameter | Φ550 |
cutting angle | 45°、 -45°、 90°Can be cut in any combination |
Sawing mode | 2 bottom saw, 1 push saw |
Profile processing range | 40-120mm |
Drilling method | Two back drills,one top drill,one bottom drill,one front drill |
Laser scribing mode | Front-rear approximate beam |
Packing Details
Company Profile
Shandong Maichen CNC Machinery Co.,LTD. is a leading enterprise in building Windows and doors and building glass industry, specializing in manufacturing complete sets of building energy-saving plastic windows and doors machines, aluminum alloy windows and doors machines, insulating glass machines, curtain wall machines. The company was founded in 2005, the products all over China's provinces, cities, autonomous regions, and exported to the United States, Europe, Russia, Nigeria, the United Arab Emirates, Brazil, India and other more than a dozen countries. We strictly in accordance with the ISO9001:2000 version of the international quality certification system, manufacturing quality, safety, standard of high quality products to get the best evaluation from customers, with good customer reputation to increase the annual turnover is our sales strategy.
The company has riveting welding workshop, mechanical processing, painting workshop, assembly workshop, exhibition hall, warehouse, covering an area of more than 30 mu, can be customized according to customer requirements and production needs of non-standard equipment. Precision mechanical parts, rigorous assembly attitude, perfect after-sales service for every customer escort. More than 30 kinds of aluminum window processing machines can complete the cutting, Angle group, drilling, punching, bending round process of aluminum profiles; More than 20 kinds of plastic doors and windows processing machines can complete plastic profiles cutting, welding, milling, cleaning procedures; More than 20 kinds of insulating glass processing machines and glass curtain wall machines can complete the cutting, cleaning, heating, gluing, cold pressing, edging, assembly and filling processes of slot-aluminum insulating glass or composite adhesive strip insulating glass. Due to the difference of production scale and efficiency, we can provide customers with the factory plan, cost accounting and the latest industry information according to the most reasonable set of industrial line assembly line operation according to your output ratio. In order to make your installation and use more safe, convenient, fast and efficient work, we have arranged professional engineers to do after-sales technical guidance, troubleshooting and other technical problems for you.
